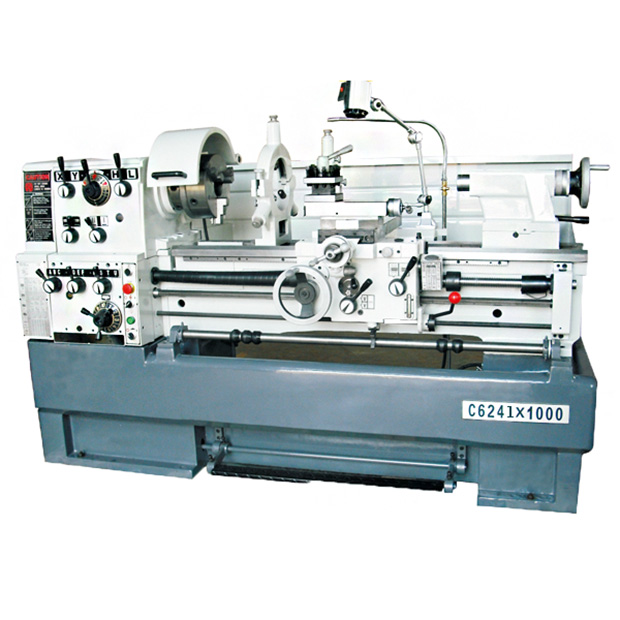

C6241
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate test flow chart included
(If you do not know what model of the universal milling machine is appropriate please contact us customer service to give you answer!)
| MODEL | C6241 | C6146 |
|---|---|---|
| Max .Swing over bed | Φ410mm | Φ460mm |
| Max .Swing over cross slide | Φ224mm | Φ274mm |
| Max .Swing in gap | Φ640mm | Φ690mm |
| Max. distance between center | 1000/1500mm | 1000/1500mm |
| Spindle bore | Φ58mm | Φ58mm |
| Taper of spindle bore | M.T.#6 | M.T.#6 |
| Range of spindle speed | 25~2000rpm | 25~2000rpm |
| Range of longitudinal feeds | 0.031~1.7mm/rev. | 0.031~1.7mm/rev. |
| Range of cross feeds | 0.014~0.784mm/rev. | 0.014~0.784mm/rev. |
| Range of metric threads | 0.1~14mm | 0.1~14mm |
| Range of inch threads | 2~112T.P.I | 2~112T.P.I |
| Range of modulus threads | 0.1-7M.P. | 0.1-7M.P. |
| Range of diametral pitch threads | 4-112D.P. | 4-112D.P. |
| Bed width | 300mm | 300mm |
| Spindle nose | D1-6 | D1-6 |
| Max. travel of compound rest | 120mm | 120mm |
| Max. travel of cross slide | 290mm | 290mm |
| Dia. Of tailstock sleeve | 60mm | 60mm |
| Max. size of tool shank | 25×25mm | 25×25mm |
| Taper of tailstock bore | M.T.#4 | M.T.#4 |
| Power of main motor | 4kw | 5.5kw |
| Unitary packing size | 1940×760×1520mm | 1940×760×1520mm |
| Gross weight | 620kg | 650kg |
| Net weight | 580kg | 600kg |
